Double-side Window Facing Displays
- Double-side screen display.
- Interial-facing 700 nits, window-facing 3000 nits.
- Ultra-slim body, beautiful appearance.

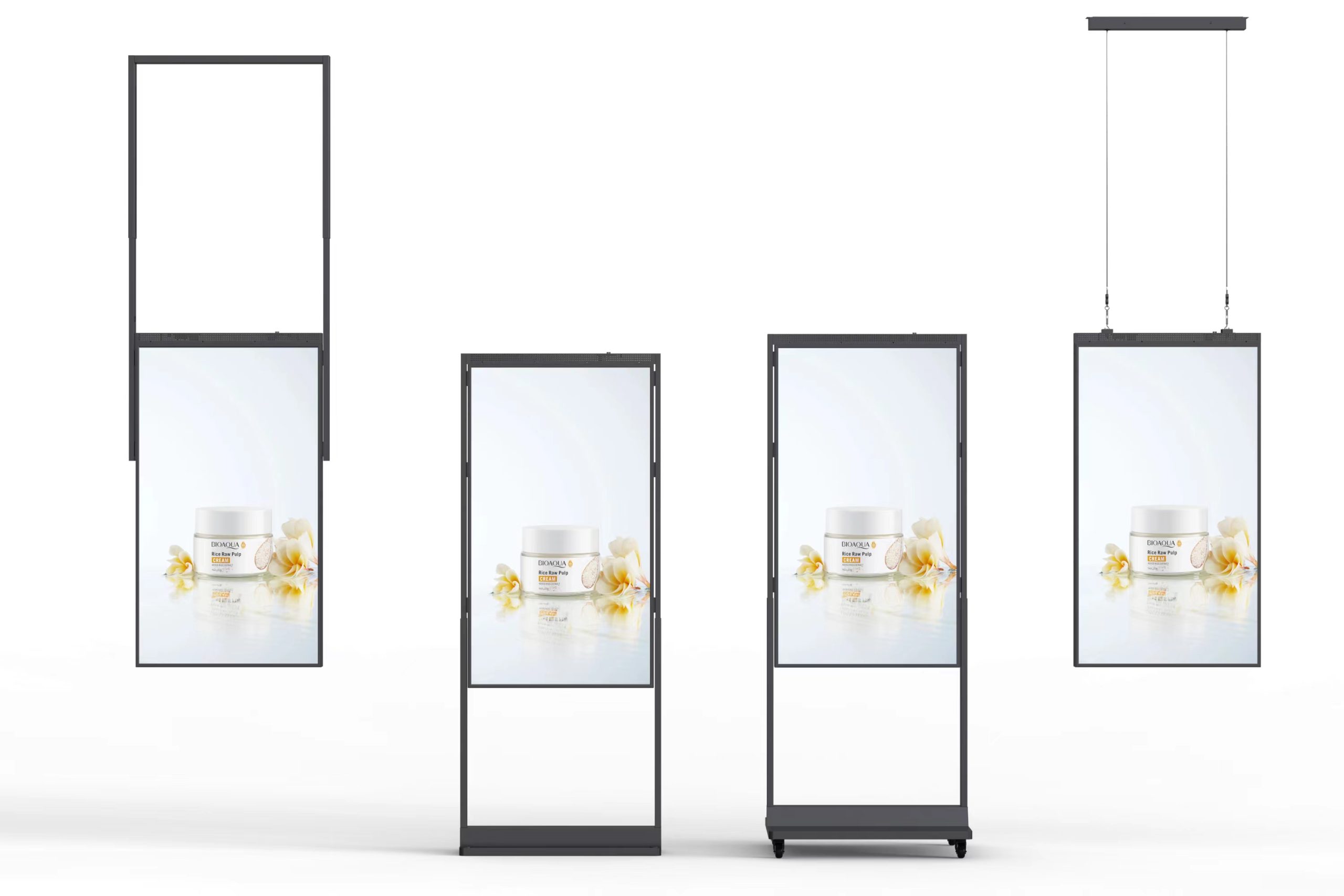

- Multiple installation method.
- Visible With Polarized Sunglasses
- Round-the-clock operation
Models
43″ 49″ 55″ 65″

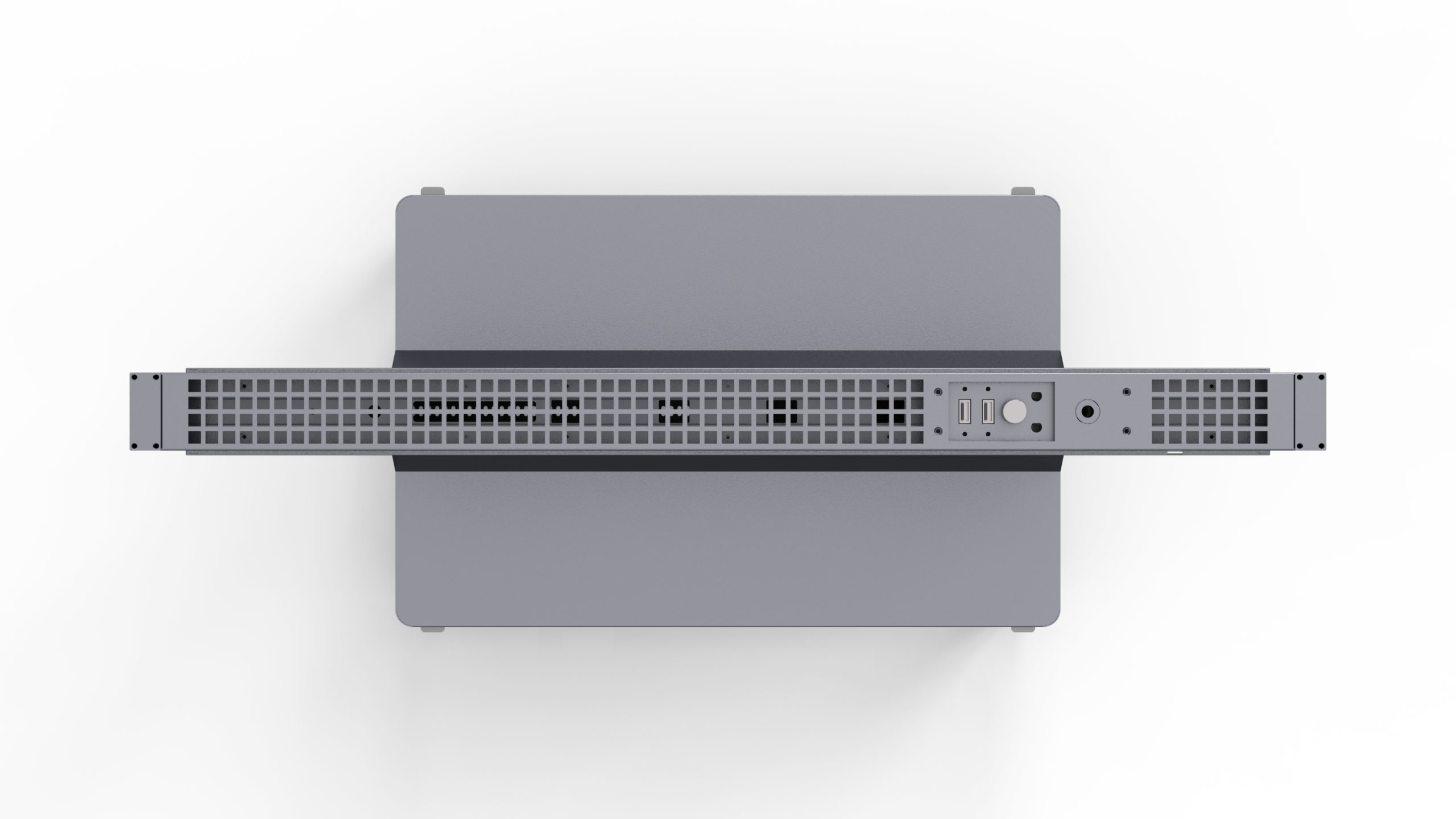

Product Pictures
Key Features
Up to 4K Ultra HD
High-resolution: 1920*1080 & 3840*2160, High dynamic contrast, clearer picture
3000 nits
3000 nits (Truly Sunlight Readable). High brightness screen, can make your menu content in outdoor performance better
Smart Brightness Sensor
Self-heat dissipation design, energy saving and noise reduction improve the service life.
Round-the-clock operation
Can be used as reliable digital signage for both offline and cloud based content 24 hours a day, 7 days a week.
Visible With Polarized Sunglasses
LED display correction technology could uniformly lighten several hundred thousand LED lights, presenting a uniform display effect with the same brightness and color scale.
Efficient Heat Dissapation Management
Professional software for thermal simulation for cooling system design, which cools down the heat generated from every part of the product with high performance.
178° Wide viewing angle
The extra wide 178° viewing angle is a perfect fit for shoppers, employees or visitors that will view displays from diverse angles while passing by.
Specifications(55″)
General
Model: 55WF30E
Screen size: 55″
Screen Active Area(mm): 1209.6 x 680.4
Resolution : FHD (1920×1080)
Aspect Ratio: 16:9
Brightness(nit): 2500nits
Contrast Ratio: 1000:1
Dynamic CR: Up to 250000:1
Viewing Angle(H/V): 178°/178°
Backlight Life Cycle: 50,000 Hrs
Operation Hours: 24/7
Response Time: 6ms
Screen Orientation: Portrait or Landscape
System
OS: Android 9.0
CPU: ARM Quad Core Cortex-A53 1.5G
GPU: Arm Mali-G52 2EE MC1
DDR: DDR 2GB
ROM: 16GB EMMC
Language: Chinese/English
Connectivity
Input: USB2.0 x2, HDMI IN x2, Ethernet RJ45 x2, RS232 RJ45 x1, IR in x1, Sensor x1
Output: HDMI Out x1, Audio out x1
Network connection
Wifi or LAN: Yes
3G/4G connection: Optional
Speaker
Build in speaker: Yes
Line-out Support: Yes
BT Speaker Support: Yes
Thermal management
Smart Backlight Control: Yes
Smart Temperature Control: Yes
Smart Fans Control: Fanless
Smart Monitoring System Cloud: Optional / CetusMSC
Overheating protection: Yes
Physical
IP rating: IP5X (Front Panel)
Glass: No
Shell: Aluminum
Standard Color: Black
Bezel width(T/L/R/B): 10mm(T/B/L/R)
Dimensions: 1232(H) x 702.8(W) x 56.75(D) mm
Net Weight: 24.6kg
Packing Dimensions(W×H×D): 1404(W) x 867(H) x 180(D) mm
VESA: 400x400mm
Operation
Working environment: Indoor window facing
Auto Brightness control: Light sensor
Operation Temperature (ambient temp.): -10oc to 35oc (Direct Sunlight) -10oc to 45oc (w/o Direct Sunlight)
Operation Humidity: 10% to 80%
Storage Temperature: -10oc to +60oc
Storage Humidity: 10% to 80%
Power
Power Supply: AC 110 /220V,50/60Hz
Power Type: Built-In Power
Power Consumption: 320W (Max)

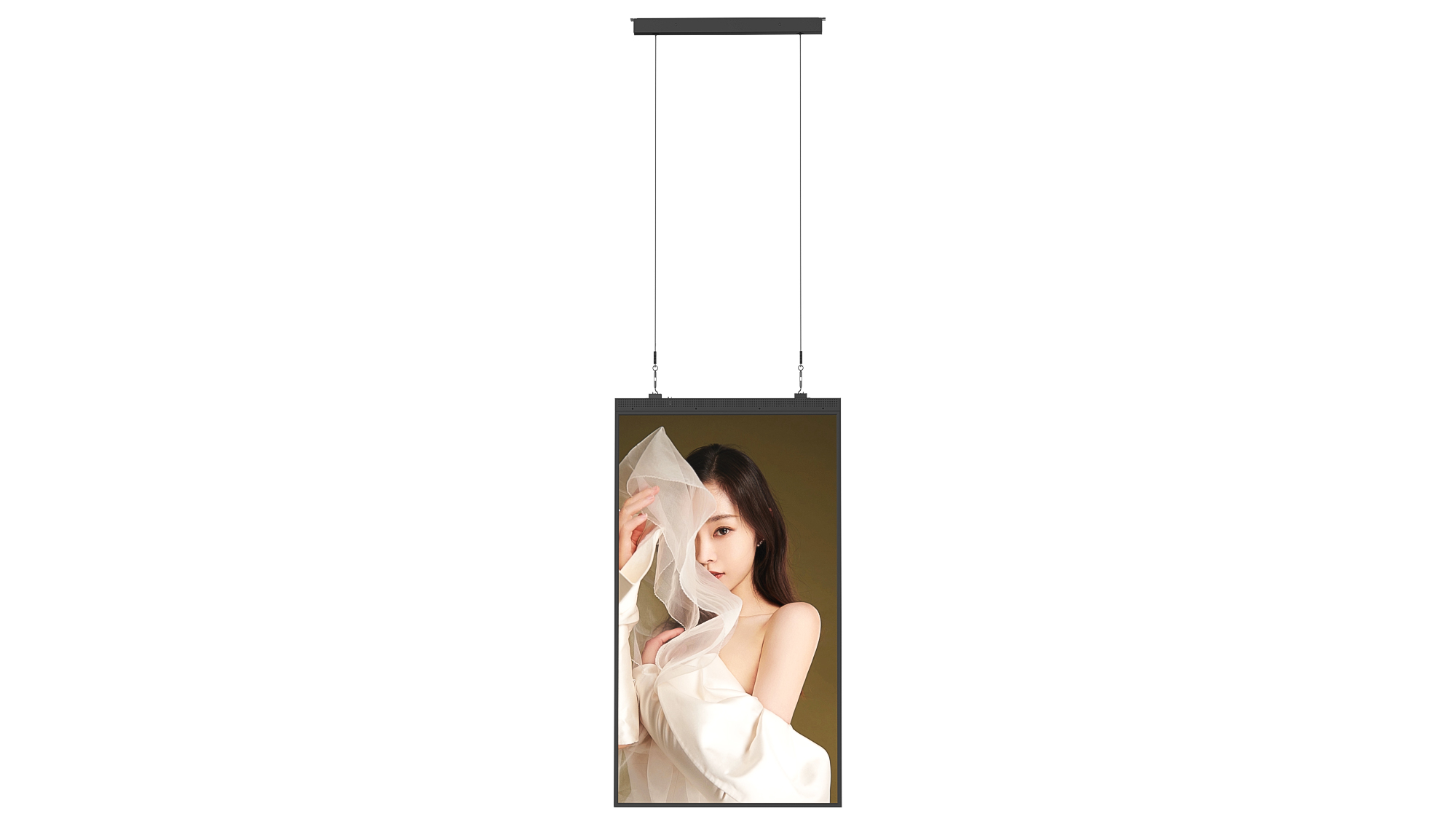

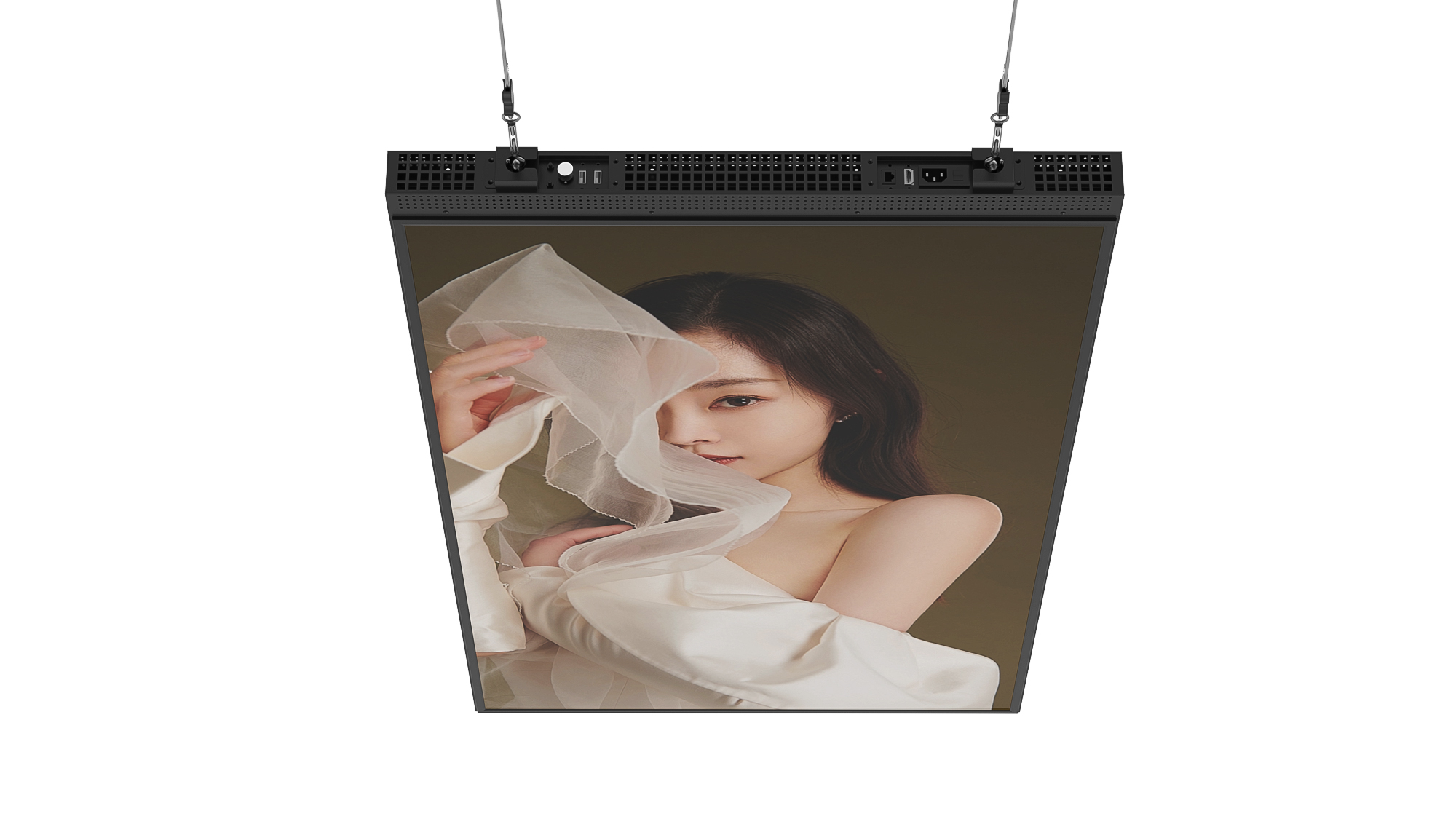

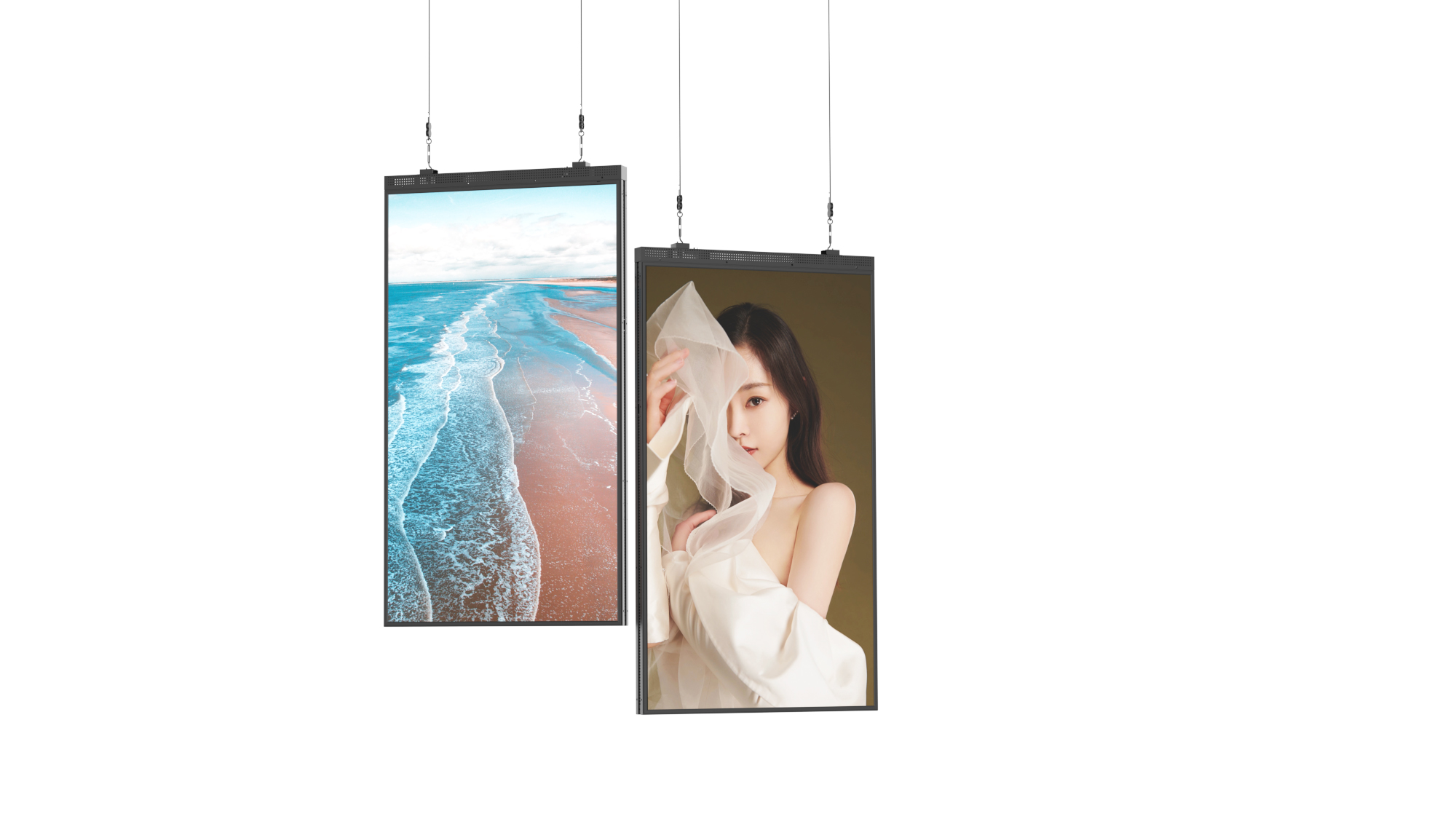

55″ (Wire rope suspension)

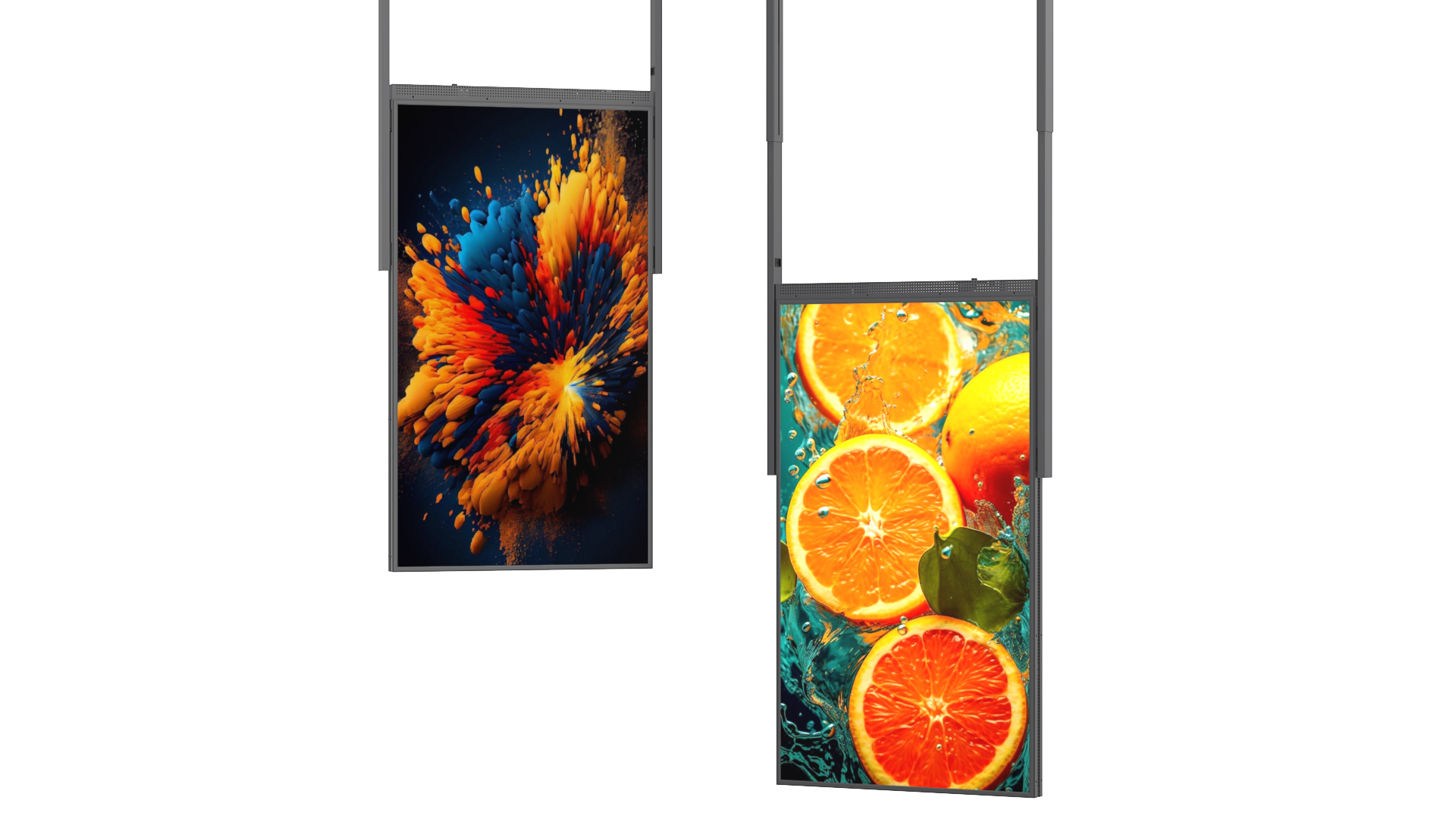

55″ (telescopic column)

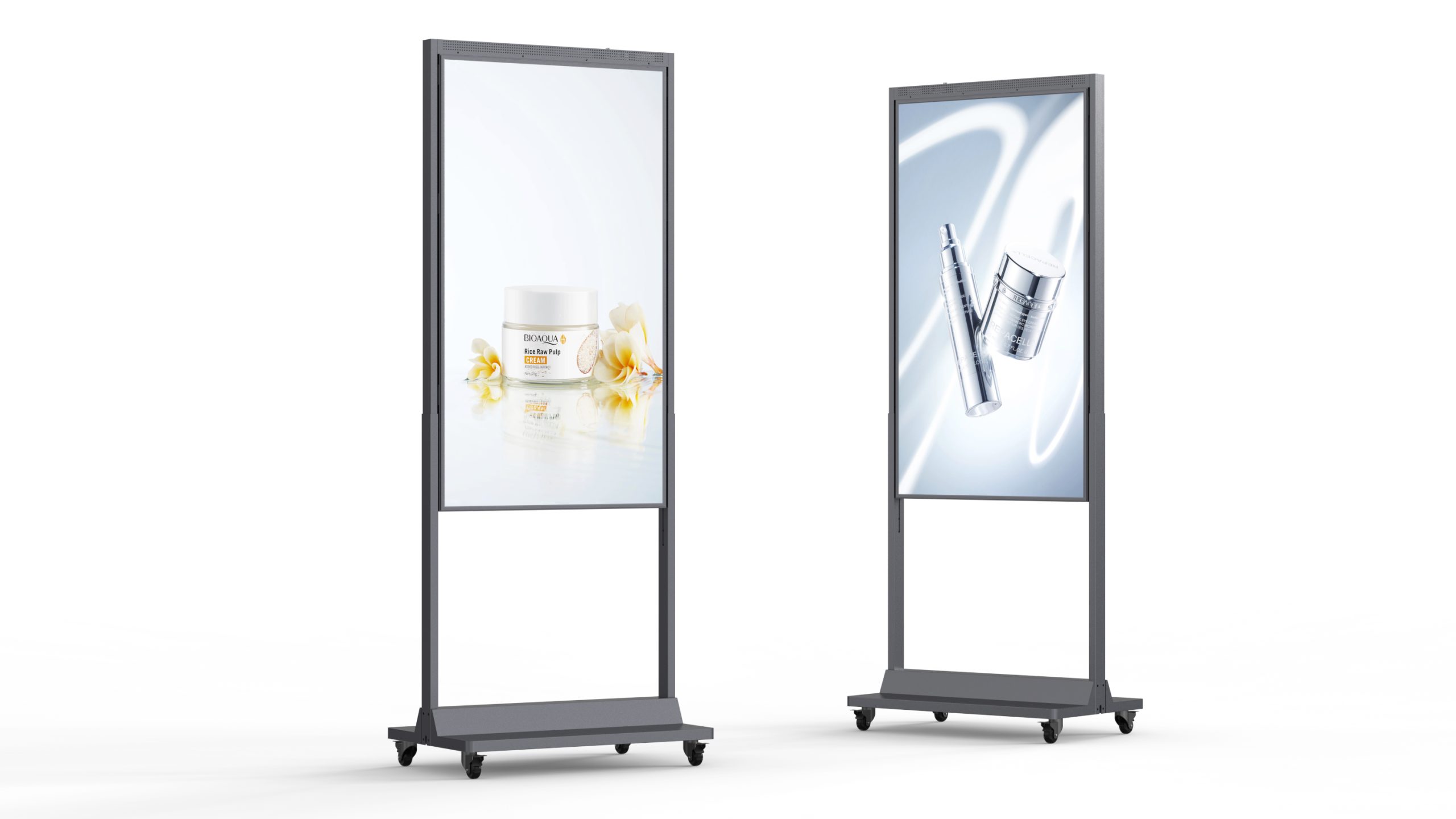

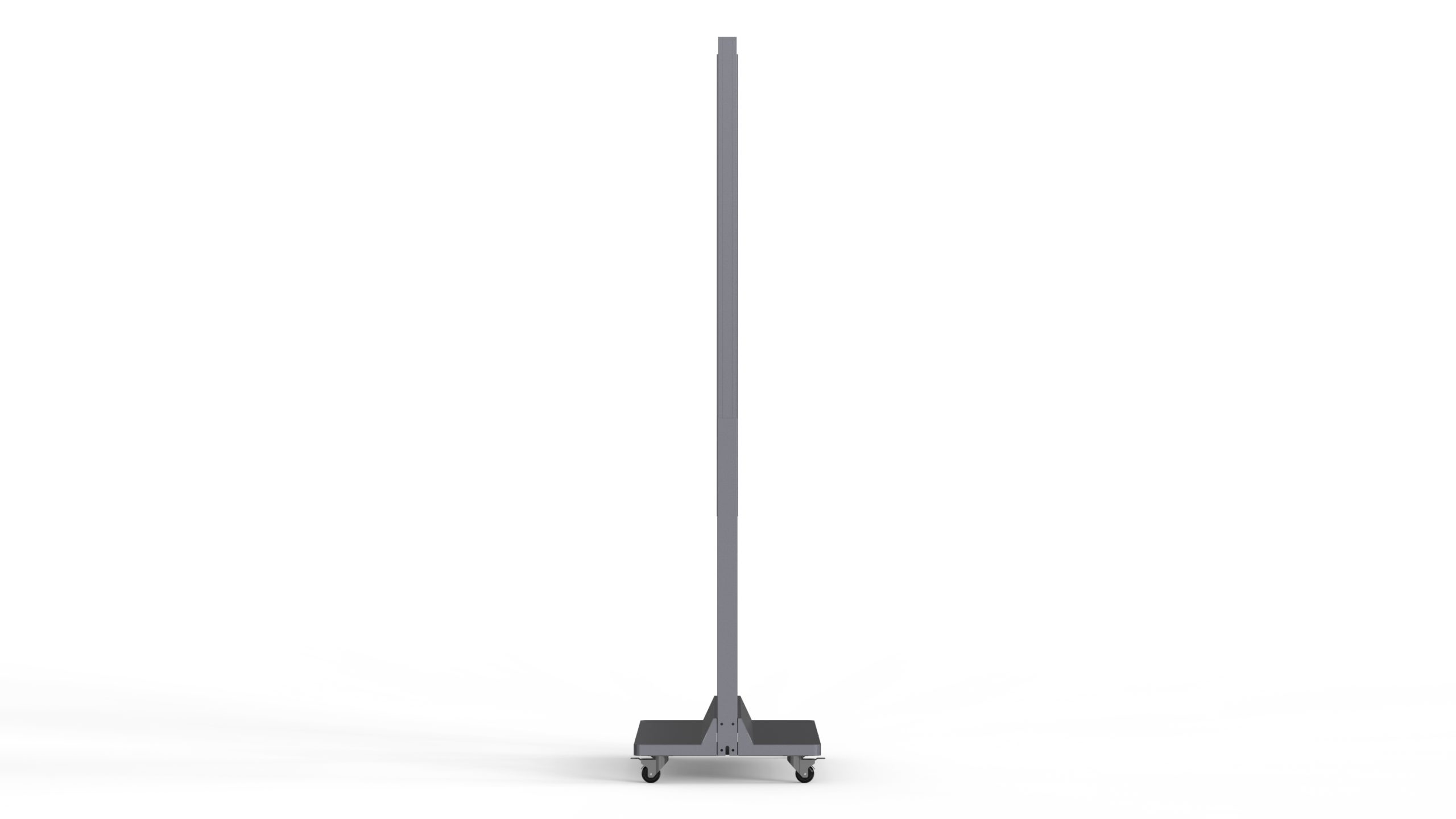

55″ (floor standing)
