- Precision IR Touch
20-point multitouch with ultra-low latency for smooth collaboration. - 4K Ultra HD + Wide Viewing Angle
Crystal clarity at 178°, ideal for group collaboration. - Wireless Multi-Platform Connectivity
One-click screen mirroring (Win/macOS/Android/iOS) + reverse control. - Smart Annotation Tools
Multi-color pens, gesture erase, instant save/share for notes. - Integrated Conference Ecosystem
Built-in cam/mic/speaker + remote collaboration + split-screen interaction. - Modular Slim Design
Wall/mobile mount + upgradable hardware for future-proof flexibility.

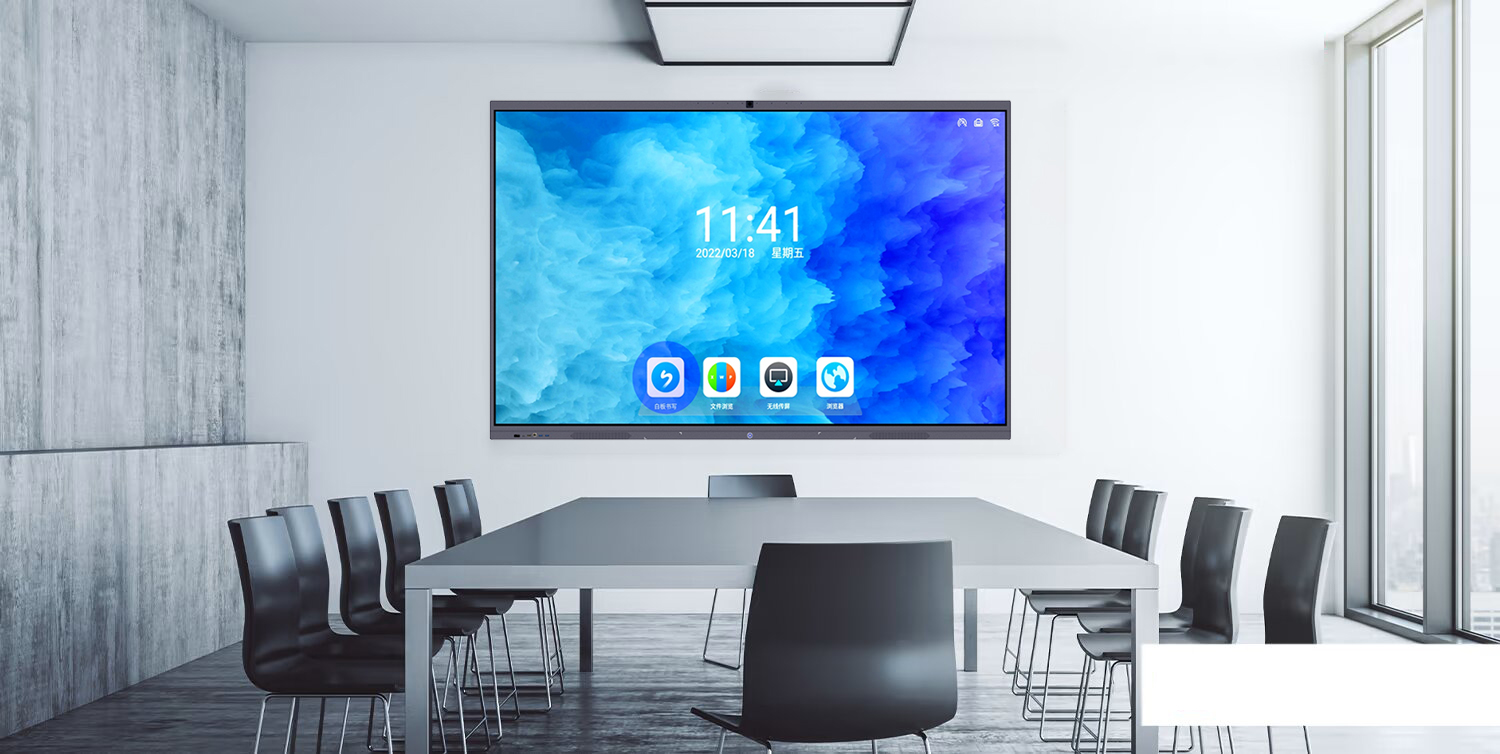

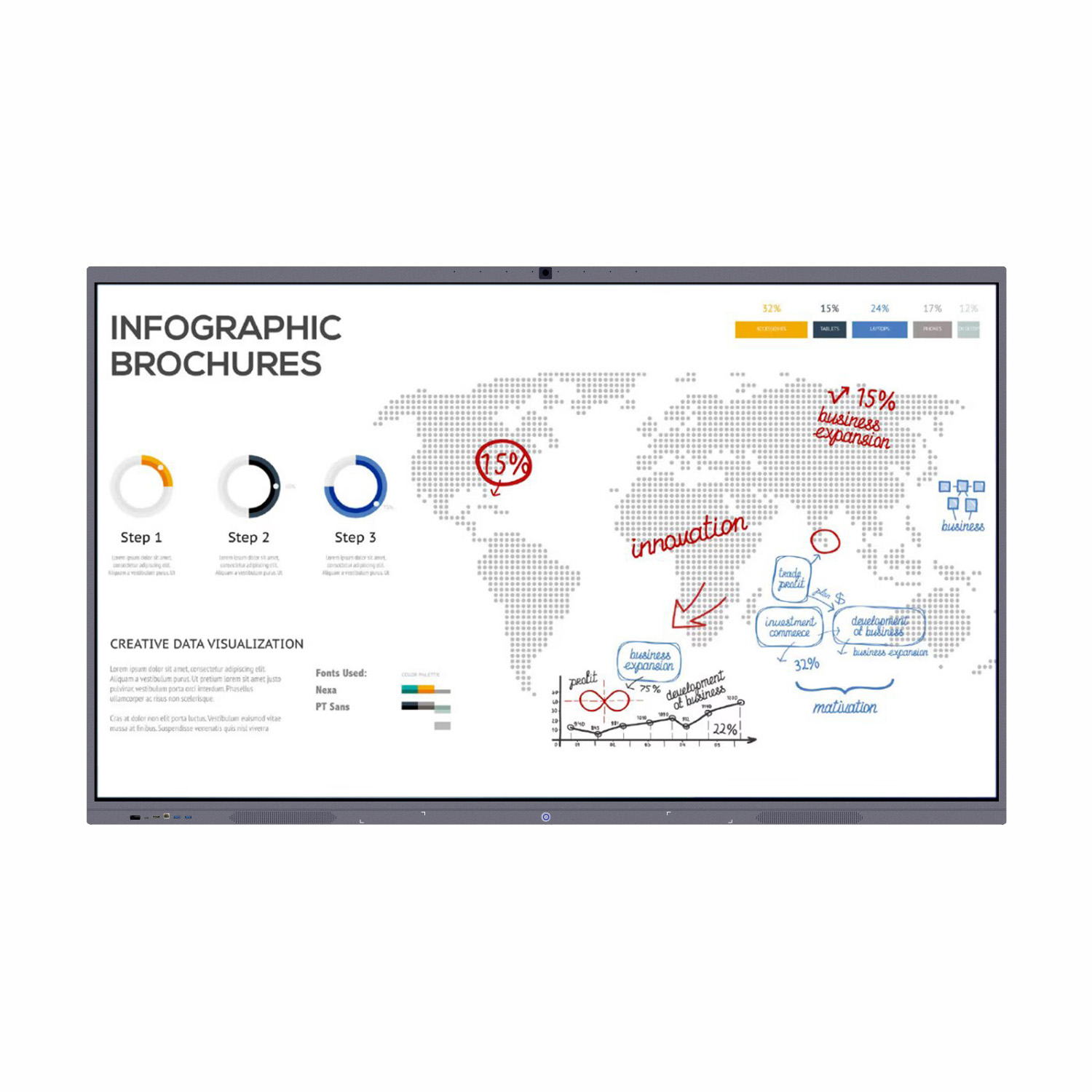

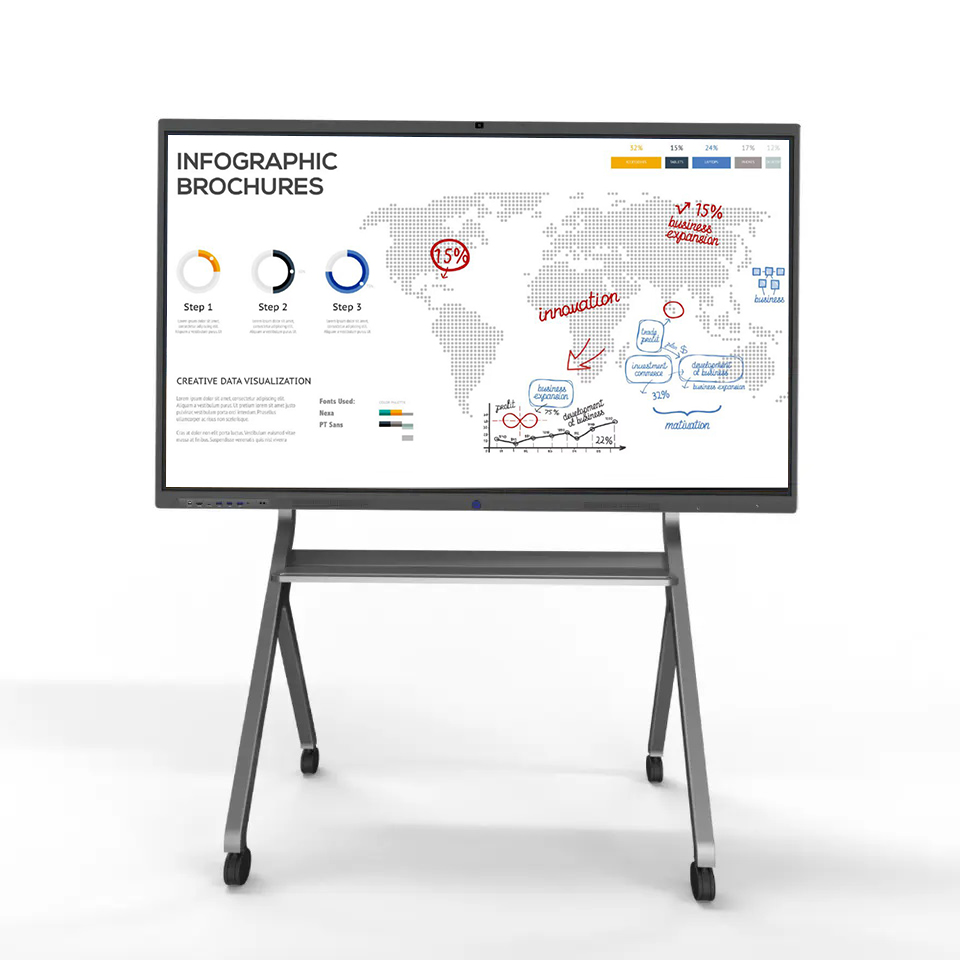

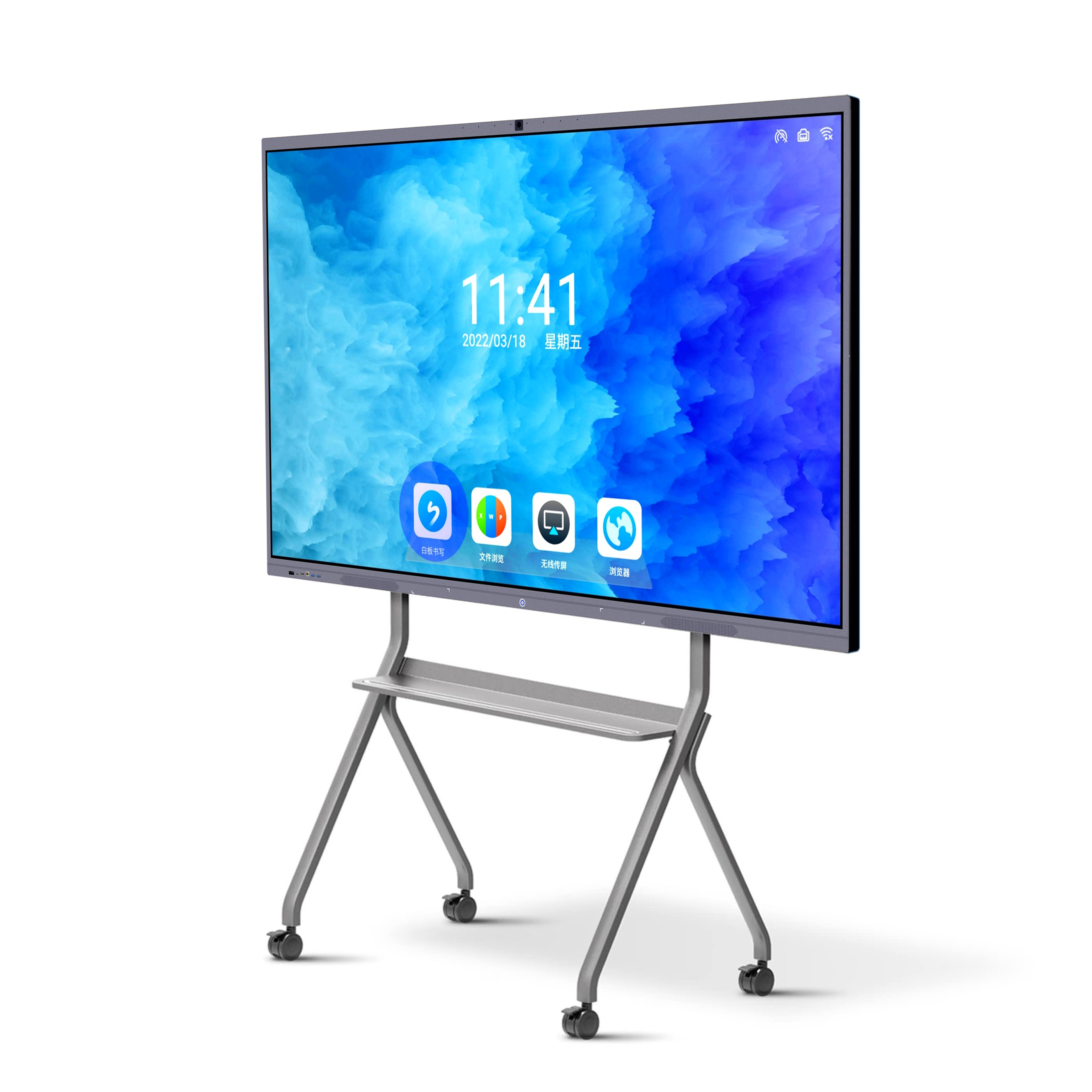

Product Pictures
Key Features
Smooth Touch
The built-in whiteboard app allows users to smoothly write, draw and erase information on-screen through touch, either by hand or with a stylus
pen.
Collaborative interaction
The touchscreen recognizes up to 20 touches at once which is ideal for simultaneous use by meeting participants.
Anti-Glare Glass
Reduce reflections and glare from sunlight/lights, improving visibility and readability in bright environments.
Architectureing Protection
Expect unstoppable performance by an octa-core processor and 4+32GB large memory.
Smooth and speedy
processing
The open Android 11 platform not only guarantees smooth processing, but also supports the installation of Android-based application.
Wireless Multi-Platform Connectivity
1080P Transmission Transfer Delay 65ms Transfer Distance up to 15m 30FPS Transmission
Supports 5GHz band.
Comfortable Viewing
Each of our Interactive Digital Boards has a filter to effectively reduce blue light so your eyes remain comfortable
even when using the screen for longer periods of time.
Impressive Sound
Embedded dual-channel 30W sound, the Aisican’s digital boards will give their users and audiences a cinematic audio-visual experience.
Specifications(65″)
Interactive Display panel
Size: 65’’
Backlight: D-LED
Resolution: 3840 x 2160
Brightness: 350cd/m²(typ.)
Contrast ratio: 4000:1(typ.)
Response Time: 8ms
Refreshing Frequency: 60Hz
Viewing angle: 178°(H) / 178°(V)
Lifetime: 50,000hrs
Color Gamut: 85%-95% NTSC
Display Colours: 1.07B(10bit)
System
OS: Android 13.0
Language: Chinese, English, etc…
Speaker
Built in speaker: 2x15W+20W
Connectivity
WI-FI: IEEE 802.11a/b/g/n/ac/ax(2.4G and 5G), IEEE 802.11a/b/g/n/ac(2.4G and 5G)
Bluetooth: BT5.1
Input: HDMI(2.0) IN x3, OPS (Optional) x1, LAN x1 (1000baseT R), USB3.0 x3, Type-C x1 (Support PD 65W), Touch x1, Audio In x1, RS-232 In x1(RJ45)
Output: RS232 OUT x2 (RJ45), HDMI Out x1, S/PDIF Out x1, Audio Out x1
Camera: optional
Power
Power Requirements: AC 100 V ~ 240 V, 50/60 Hz
Power Consumption Without OPS: 240W (Max)
Standby Consumption: <0.5W
Touch
Sensing Type: Infrared Touch Frame
Surface Protection: Anti-Glare Glass
Infrared Touch: ≤20 points
Touch Accuracy: 90%(±1mm)
Theory Clicks: Unlimited
Minimum Touch Object: ≥2mm
Windows 10/8/7,Android: Multi Touch
Physical
Housing Color: Black & Tarnish
Product Size (W x H x D): 1488.1 × 899.6 x 114mm / 58.6 × 35.4 × 4.5 inch
Package Size (W x H x D): 1629 × 1040 x 240mm / 64.1 × 40.9 × 9.4 inch
Net Weight: 34.7kg/ 76.5lb
Packed Weight: 44.7kg / 98.5lbs
VESA: 600x400mm, 4-M8 screw
Optional
Basic: Mobile cart, OPS
What’s in the box
User manual
Pen x 2
Remote control
Wireless Cast x 1 (optional)
Power Cable
Battery x 2
Wall Mount Bracket x 1
Dimension(65″)
