IP66 Outdoor Digital Signage
● IP66 Rated Fully Enclosed System, Weatherproof
● Anti-Glare Tempered Glass, High Visibility
● LG Heat-resistant Industrial-grade LCD Panel, long life-time
● High Brightness: 3000Nits
● Maintenance-Free
● Android OS / Windows OS / TV Board
Models
32″ 43″ 49″ 55″ 65″ 75″

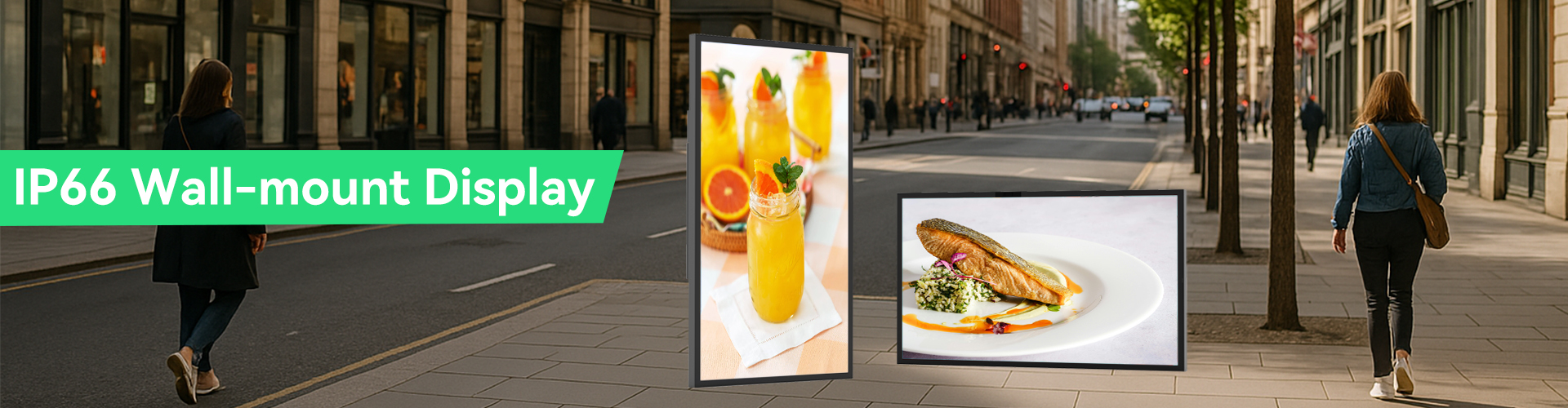

Product Pictures




Key Features

Up to 4K Ultra HD
High-resolution: 1920*1080 & 3840*2160, High dynamic contrast, clearer picture

3000 nits
3000 nits (Truly Sunlight Readable).High brightness screen, can make your menu content in outdoor performance better

Anti-Glare Glass
Reduce reflections and glare from sunlight, improving visibility and readability in bright environments.

IP66 Rating Protection
Waterproof, dustproof, anti-vandal toughed glass for protection from extreme environmental conditions and impacts to the display.

Smart Brightness Sensor
Save energy, extend screen lifespan, improve readability, and reduce eye strain. At night, it lowers the screen brightness to prevent discomfort from excessive light, making it easier on the eyes and improving overall viewing experience.

Safety Lock, anti-theft
With Professional anti-theft lock design, internal locking of bolts, no exposed high-strength steel doors, can prevent criminals from picking locks and doing malicious damage.

Round-the-clock operation
Can be used as reliable digital signage for both offline and cloud based content 24 hours a day, 7 days a week.

Efficient Heat Dissapation Management
Professional software for thermal simulation for cooling system design, which cools down the heat generated from every part of the product with high performance.

Maintenance-FREE
IP66 fully enclosed, maintenance-free, rear door access with lock for easy operation.
55″
General
Screen Size: 55″
Screen Active Area(mm): 1210 x 680mm
Resolution: UHD(3840×2160)
Aspect Ratio: 16:9
Brightness(nit): 3000nits
Constrast Ratio: 1200:1
Viewing Anagle(H/V): 178°/178°
Backlight Life Cycle: 50,000 Hrs
Operation Hours: 24/7
Response Time: 8ms
Screen Orientation: Portrait/Landscape
Touch Screen: Optional
System
OS: Android 9.0
Connectivity
Input: x1 HDMI IN, x2 USB 2.0, x1 LAN, x1 SD Cart Slot, x1 AV IN
Output: x1 AV OUT
Network Connection
Wifi or LAN: Yes
3G/4G connection: Optional
Thermal management
Build in fan: Airflow
Overheating Protection: Yes
Operation
Working Environment: Full outdoor
Auto Brightness Control: Light sensor
Operation Temperature (ambient temp.): -20℃ to 55℃
Operation Humidity: 5% to 95%
Physical
IP Rating: IP66
Glass: 5 mm (Anti-Glare, Tempered)
Pedestal Metal: Galvanized steel with powder coated
Display unit housing: Full aluminum
Standard Color: Black
Dimensions: 732(H) x 1262(W) x 86(D) mm
Power
Power Supply: AC 110 /220V,50/60Hz
Power Type: Built-In Power
Power Consumption: 280W(Max.)
