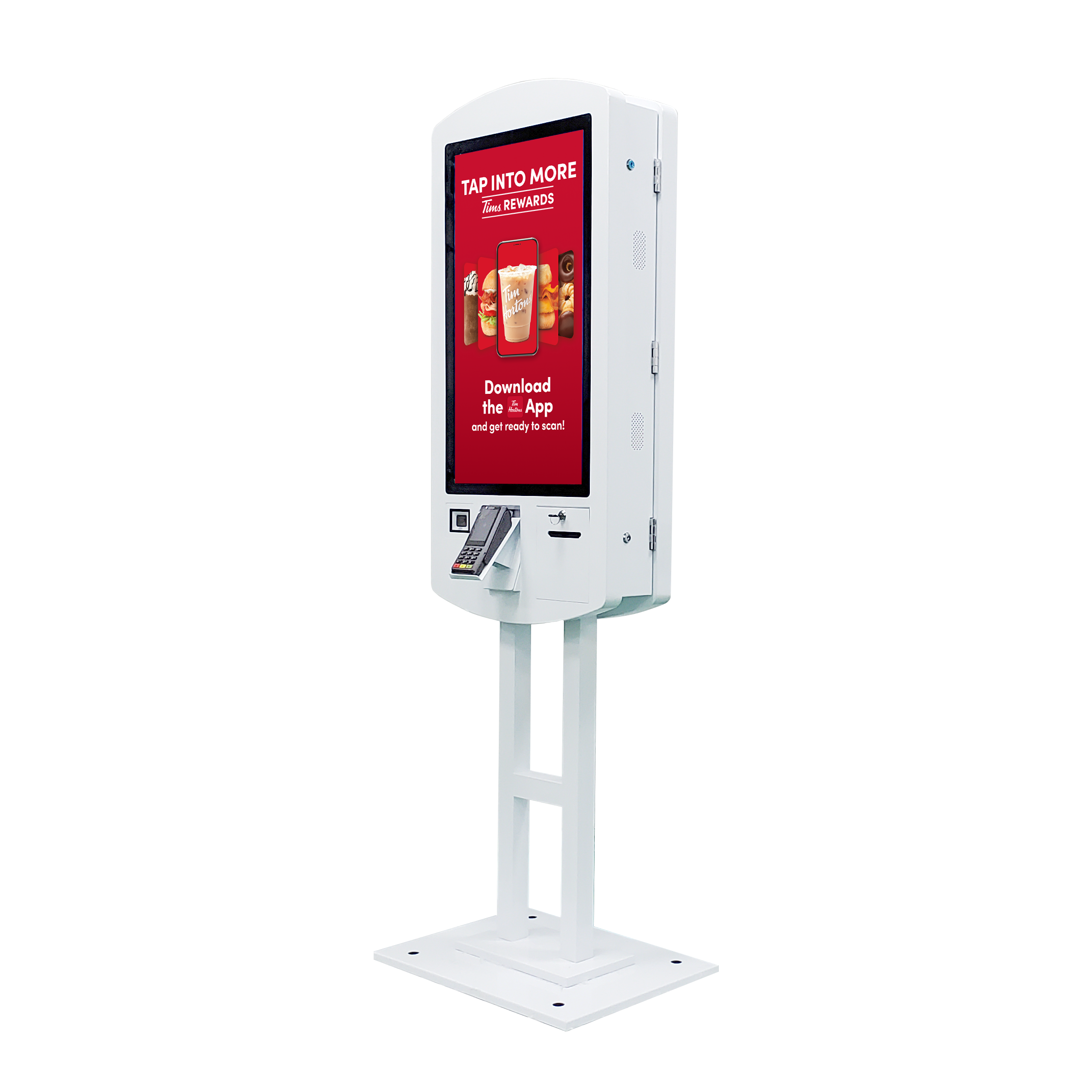

32″ Self-ordering kiosk

  • 32” true flat PCAP touch screen.
  • Flexible configurations: single/dual sided floor-standing, wall-mount.
  • Customized card machine holder.
  • QR/bar code reader & NFC card reader 2 in 1.
  • 58/88mm thermal printer, OPOS supported, utility provided.
  • Printer lock
  • Android OS / Windows OS

Specifications(32″ single-side & wall-mounted)

Specifications
Versions:Android OS Windows OS
CPURK3288i3-4th gen
RAM2GB4GB DDR3
Internal memory16GB128GB SSD
Operation systemAndroid 6.0Win10(not with license)
Touch screenCapacitive Touchcapacitive Touch
Display screen:Original BOE or CSOT LCD panel, 21.5″ 32″ FHD IPS  full view angle, 1920*1080, LED backlight
 View angle: 89/89(H),89/89(V); Contrast ratio:1000:1; Brightness: 350nits; Ratio: 16:9
WiFiWiFi 802.11WiFi 802.11
3G/4Goptionaloptional
Ethernet RJ45yesyes
Buletoothnono
SD Card slotnono
USB portyesyes
WiFi portyesyes
on/off switchyesyes
Video formatMPEG-1,MPEG-2,MPEG-4,H.264,H.265,RV etc.,support up to 1080p
Audio formatMP3/WMA/AAC etc.
Photojpeg
Thermal printer 80mmyes
QR code scanneryesyes
NFC card readeryesyes
Speaker2*5W/2*5W
LanguageMulti-language
AdapterInternal power board (AC100-240V)

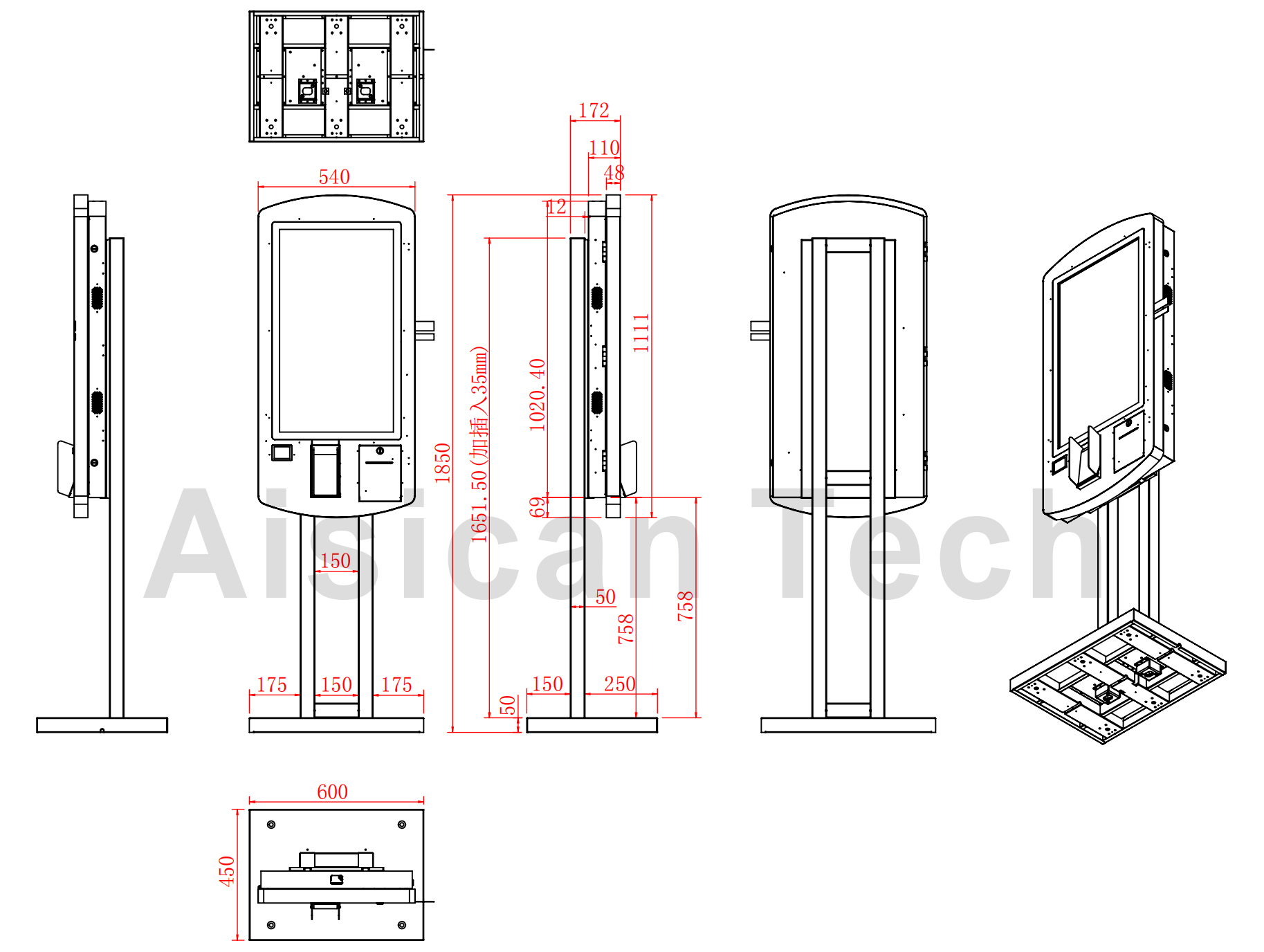

Dimension(32″ single-side & wall-mounted)
